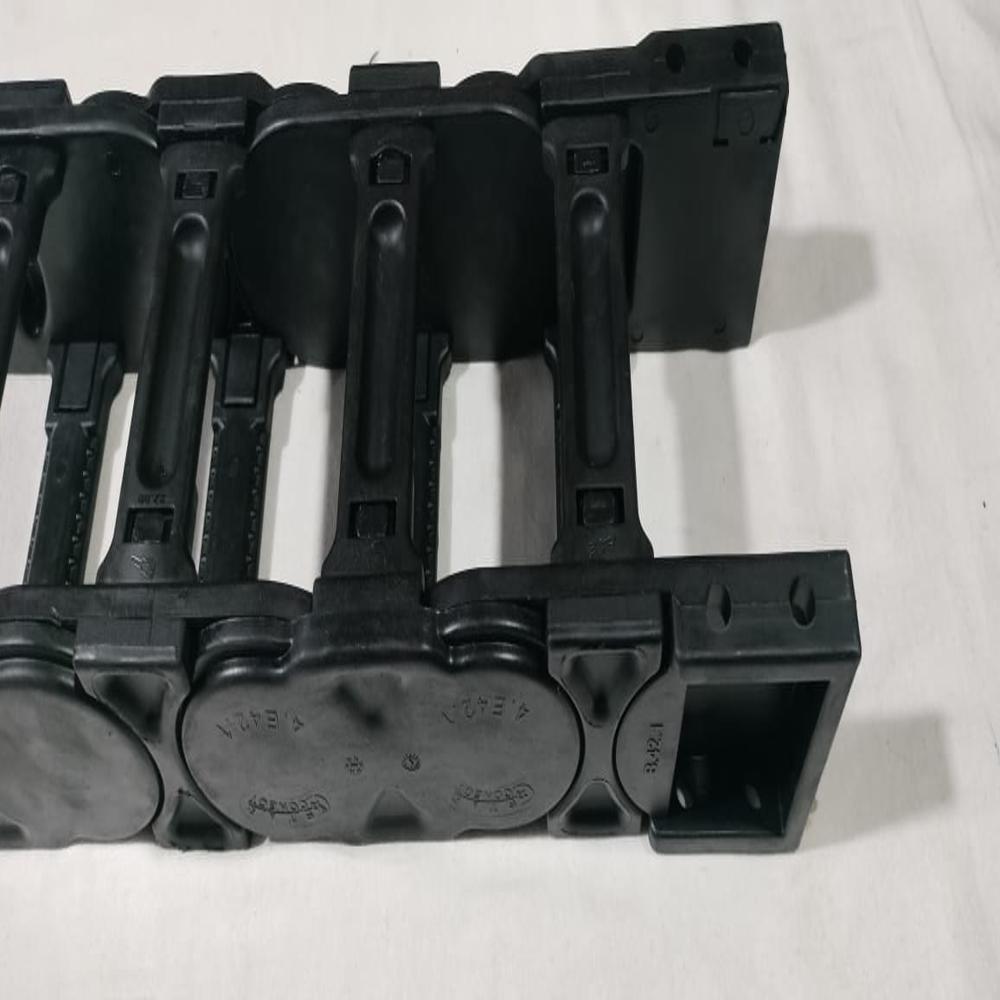

Open Type Cable Drag Chain

Price 3582.0 INR/ Meter

Get a Price/Quote

Open Type Cable Drag Chain Specification

Usage
Machinery

Material
Other

Size
42x60

Metal Type
Other

Height
86 Millimeter (mm)

Hole Shape

Fence Type
Other

Product Type
Cable Drag Chain 42x60 Open Type Chain

Weight
600 Grams (g)

Frame Type
Other

Color
`Black

Fittings
Other

Wire Range
Up to 60 mm (Internal Width)

Length
1 Millimeter (mm)

Width
42 Millimeter (mm)

Fence Width
42 mm Millimeter (mm)

Fence Length
Customizable per Requirement Millimeter (mm)

Application
Construction

Warranty
1 year

Bending Radius
75 mm, 100 mm, 125 mm, 150 mm (available options)

Noise Level
Low-Noise Operation

Inner Width
60 mm

Link Structure
High-Stability Links with Pin & Bore Connection

Opening Type
Openable Top Cover (OP)

Outer Width
77 mm

Installation
Horizontal or Vertical

Pitch
55 mm

Inner Height
42 mm

Operating Temperature Range
-40°C to +130°C

Resistance
Oil, Dust, Coolant, Abrasion

Color
Black

Outer Height
56 mm

Open Type Cable Drag Chain Trade Information

Minimum Order Quantity
5 Meter

FOB Port
Delhi

Supply Ability
500 Per Day

Delivery Time
6 Days

Sample Available
No

Packaging Details
Strong Packing

Certifications
Available

About Open Type Cable Drag Chain

STAR4.E42.1.OP 42x60 Open type Chain
Inner Height :- 42 MM
Outer Height :- 64 MM
Inner Width :- 80 MM
Outer Width :- 106 MM
Bending Radius :- 75,100,115,150,160,175,200,250,300,350,
Type :- Open
Colour -Black
Material :- Nylon 66 ( PA-66 with 30% Fiber Glass )
Temperature :- -30-C to +130-C
Brand Name :- STAR CONECT
Stock :- 1000 Meter
Delivery :- Same day after after payment
100 % Made In India

Efficient Cable Organization for Industrial Applications

STAR4.E42.1.OP Cable Drag Chains are engineered to streamline cable and hose routing in demanding machine environments. Their modular design, coupled with oil and abrasion resistance, ensures longevity and consistent performance, reducing machine downtime. The openable top cover allows for straightforward cable insertion and adjustments, while customizable lengths ensure a perfect fit for any workspace.

Modular, Durable, and Easy to Install

This cable drag chain features high-stability links built with reinforced polyamide for exceptional strength and reliability. Its non-metallic construction makes it lightweight and corrosion-resistant. Mounting brackets included in the package enhance installation flexibility, allowing for both horizontal and vertical setups as per application requirements.

FAQ's of STAR4.E42.1.OP ( 42x60) OP Cable Drag Chain:

Q: How is the STAR4.E42.1.OP Cable Drag Chain installed?

A: The STAR4.E42.1.OP Cable Drag Chain can be mounted either horizontally or vertically using the included mounting brackets. Its openable top cover simplifies insertion and removal of cables, making the installation process quick and convenient in a variety of layouts.

Q: What are the available bending radius options for this drag chain?

A: The chain is available with bending radii of 75 mm, 100 mm, 125 mm, and 150 mm, providing flexibility to accommodate different cable routing requirements and machine designs.

Q: Where can this drag chain be used?

A: It is suitable for cable and hose management in CNC machines, robotics, and automation equipment, making it ideal for various industrial applications requiring efficient and reliable cable organization.

Q: What is the operating temperature range of the STAR4.E42.1.OP?

A: This drag chain operates reliably in environments with temperatures ranging from -40C to +130C, making it suitable for both cold-storage facilities and high-temperature manufacturing settings.

Q: What are the key material and resistance features of this drag chain?

A: The drag chain is made of reinforced polyamide (Nylon PA66), which is non-metallic, lightweight, and resistant to oil, dust, coolant, and abrasion, ensuring durability in harsh environments.

Q: How does the openable top cover benefit the user?

A: The openable top cover allows for easy access to the interior, facilitating installation, inspection, and maintenance of cables without dismantling the chain, thereby saving time and reducing maintenance effort.

Q: What is the maximum internal width for wires or hoses?

A: The internal width of 60 mm accommodates a wide range of cable and hose sizes, offering sufficient space for complex wiring configurations in automated and robotic machinery.
