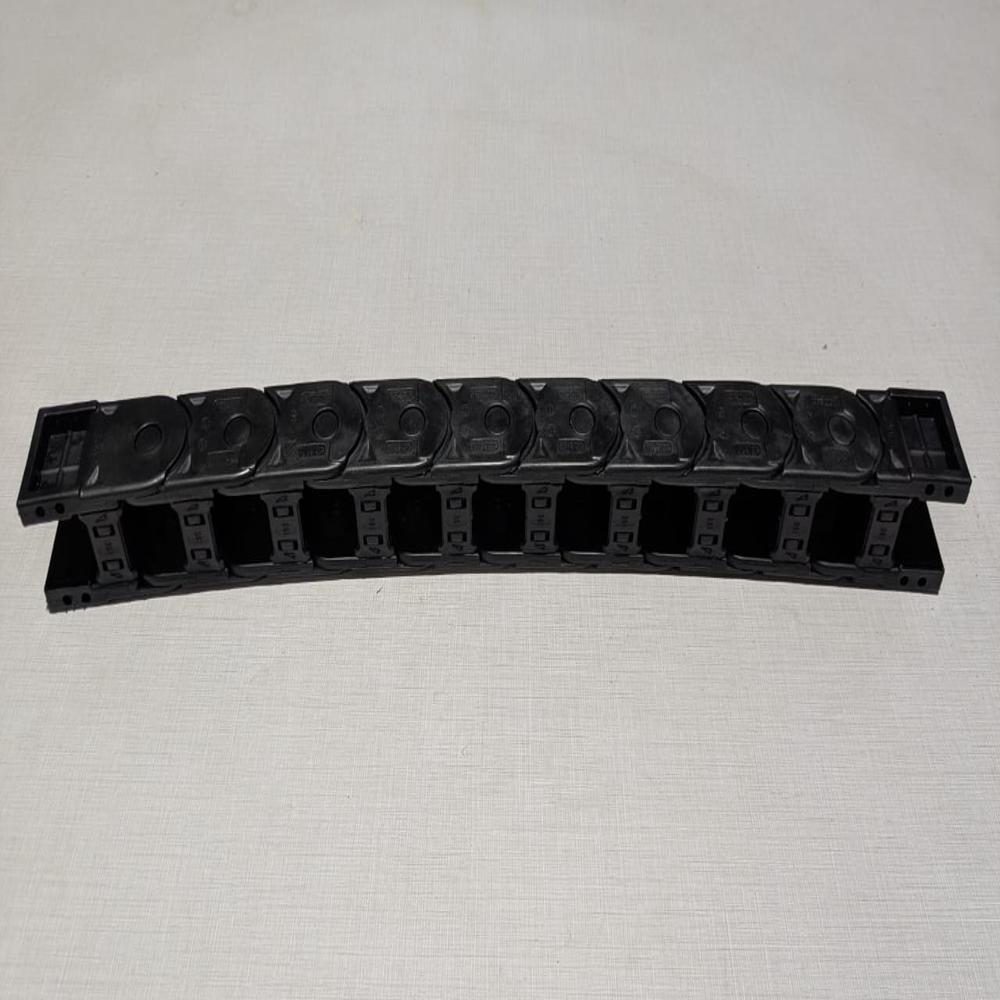

Cnc Machine Cable Drag Chain

Name: Cnc Machine Cable Drag Chain
Brand: CNC MACHINE HOUSE
Price: 6300.0 INR
Availability: InStock

Price 6300.0 INR/ Meter

Get a Price/Quote

Cnc Machine Cable Drag Chain Specification

Usage
Machinery

Size
60x450

Metal Type
Other

Hole Shape
Square

Height
60 Millimeter (mm)

Fence Type
Other

Product Type
Cable Drag Chain

Weight
6.600 Grams (g)

Frame Type
Other

Color
Black

Fittings
Other

Wire Range
Depend On Size

Width
486 Millimeter (mm)

Length
1 Meter (m)

Fence Width
450 Millimeter (mm)

Fence Length
Depend On Customer Meter (m)

Application
Construction

Warranty
1-Year

Cnc Machine Cable Drag Chain Trade Information

Minimum Order Quantity
5 Meter

Delivery Time
1 Days

About Cnc Machine Cable Drag Chain

STR-DRG- 60X450 Open Type Chain
Inner height -60mm
Inner width -450mm
Outer height -86mm
Outer width -486mm
Bending Radius -100,150,200,250,300
Colour - Black
Material - PA 66 with 30% fiber glass
Speed - 7m/sec
Operating temperature - (- 30 degree to 130 degree C)
Easy to install and repair, open on both side, move flexibly.
Delivery - Reddy Stock
100 % made in india

Engineered for Industrial Demands

The CNC Machine Cable Drag Chain is built to withstand rigorous use in machinery and construction environments. Its robust design supports wear resistance, ensuring stable performance in dynamic applications. Its flexibility allows for effective cable management, protecting against mechanical stress during operation, which helps in extending the lifespan of moving cables and hoses.

Customizable for Versatile Installations

With customizable fence length and adaptable wire range, this cable drag chain can be tailored for diverse industrial setups. The square hole shape and substantial width provide ample space for several cables or hoses, making it suitable for a variety of mechanical systems. Its compatibility with customer-specific requirements enhances operational efficiency on site.

FAQ's of Cnc Machine Cable Drag Chain:

Q: How do I install the CNC Machine Cable Drag Chain in my machinery setup?

A: The drag chain can be installed by securing its ends to the fixed and moving parts of your machine using the provided mounting interfaces. The cables or hoses should be placed inside the chain, ensuring they are properly supported and have enough length for movement without tension.

Q: What are the primary benefits of using this cable drag chain in construction applications?

A: This cable drag chain protects cables and hoses from mechanical wear, tangling, and external damage, which is especially valuable on construction sites. It also simplifies cable management, reduces maintenance downtime, and increases the safety and longevity of connected equipment.

Q: When should I consider replacing the cable drag chain?

A: You should inspect the drag chain periodically for visible wear, cracks, or deformities. Replacement is recommended if any part is broken, if the chain no longer moves smoothly, or if it has surpassed its warranty period and shows signs of stress from prolonged use.

Q: Where is this CNC Machine Cable Drag Chain commonly used?

A: This drag chain is primarily used in CNC machinery, automation systems, and construction machinery where cables and hoses must be moved securely along a designated path. It supports applications where frequent motion and protection of electrical and hydraulic lines are essential.

Q: What is the process for selecting the correct cable drag chain size and specifications?

A: Begin by determining the diameter and quantity of cables or hoses to be carried. Match these with the internal dimensions and wire range of the chain. Consider the required length, movement radius, and environmental factors of your application before selecting the exact model.

Q: Can the cable drag chain be customized to fit unique project requirements?

A: Yes, the drag chain offers customizable fence lengths and can accommodate wire sizes depending on the specific needs of your project. This flexibility makes it suitable for a wide variety of industrial and mechanical installations.
